SUS 316L High Shear Vacuum Emulsifier Mixer Cosmetic Manufacturing Machine
Detalhes do produto:
| Lugar de origem: | porcelana |
| Marca: | LIANHE |
| Certificação: | CE , ISO , SGS , TUV |
| Número do modelo: | LH-VME 50-100 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | Contact Us |
| Detalhes da embalagem: | Empacotado normalmente no filme de madeira do caso ou do envolvimento, igualmente pode ser personali |
| Tempo de entrega: | 30 dias de trabalho |
| Termos de pagamento: | T/T, L/C, D/A |
| Habilidade da fonte: | 20 grupos/grupos pelo mês |
|
Informação detalhada |
|||
| Capacidade: | 5L - 5000L | Material: | SUS304, SUS316L |
|---|---|---|---|
| Razões de compra chaves: | Vida útil longa | Agitando a velocidade: | 0-65 RPM |
| Velocidade de homogeneização: | 0-3600 RPM | Função: | Emulsão, homogeneizando, mistura, aquecendo-se, vácuo |
Descrição de produto
SUS 316L High Shear Vacuum Emulsifier Mixer Cosmetic Manufacturing Machine
Product Description:
Vacuum emulsification is the high-shear emulsifier distributes one or more phases to another phase efficiently, quickly and uniformly under vacuum conditions. Normally, each phase (such as oil phase and water phase) is not mutually compatible. The utility model utilizes the strong kinetic energy brought by the machine, so that the material can withstand hundreds of thousands of hydraulic shearing, centrifugal extrusion, impact tearing and the like in each of the narrow and narrow gaps of the rotor, thereby making the incompatible Under the joint action of mature technology and appropriate amount of additives, the emulsion is dispersed evenly in an instant, and after high-frequency circulation and reciprocation, a high-quality product without bubbles, fineness and stability is finally obtained.
Product Structure:

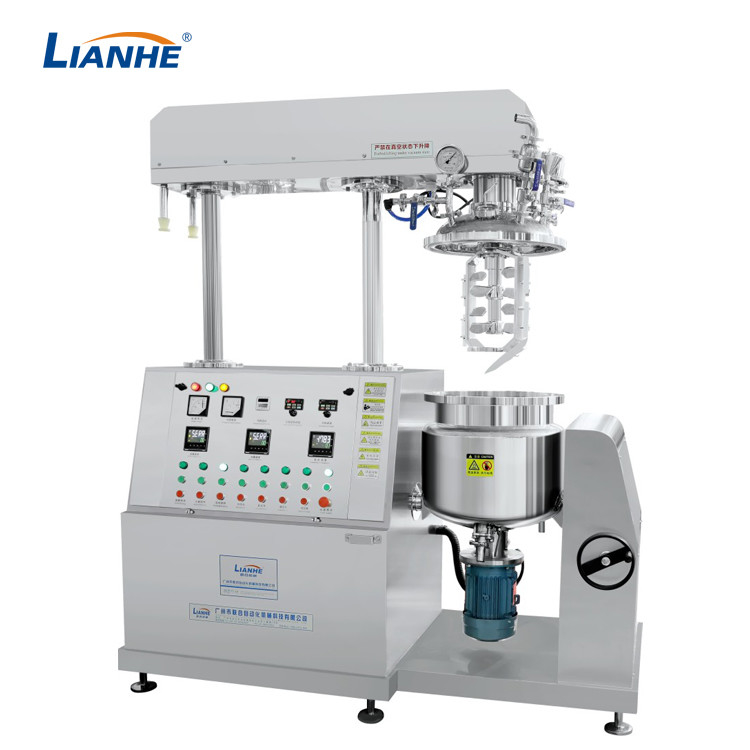

The group consists of: oil pan, water pot, heating system, mixing system, vacuum system, automatic lifting system, operation control cabinet, and piping system.
Product parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Product Specifications:
• Capacity: 5L, 10L, 15L, 25L, 30L, 50L, 100L, 150L, 200L, 250L, 350L, 500L, 650L, 1000L, 1500L, 2000L,3000L,5000L

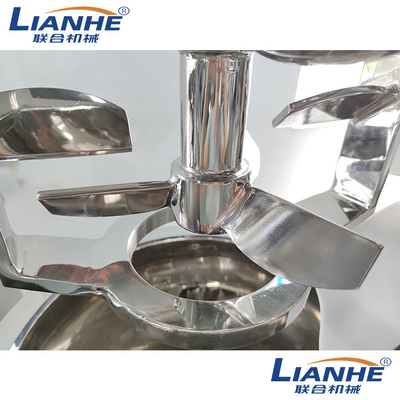

• Agitator type: homogenizer (high-speed agitator), sweep wall agitator (low-speed agitator)
• Certificate: CE
• one year warranty
• Supply capacity: 50 units/month
Product Advantage:
The vacuum emulsifying mixer machine produces cream and lotion with a fine, smooth, glossy form and a highly stable essential material. During the production process, operators must have a wide range of skills and abilities to produce the best cream. The classic way of making cream is to heat the oil and water at a temperature, mixing, packing materials, emulsifying, and cooling. On the other hand, the vacuum emulsifying mixer machine's cream is bubble-free, supple, smooth, and has a long life shelf.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
