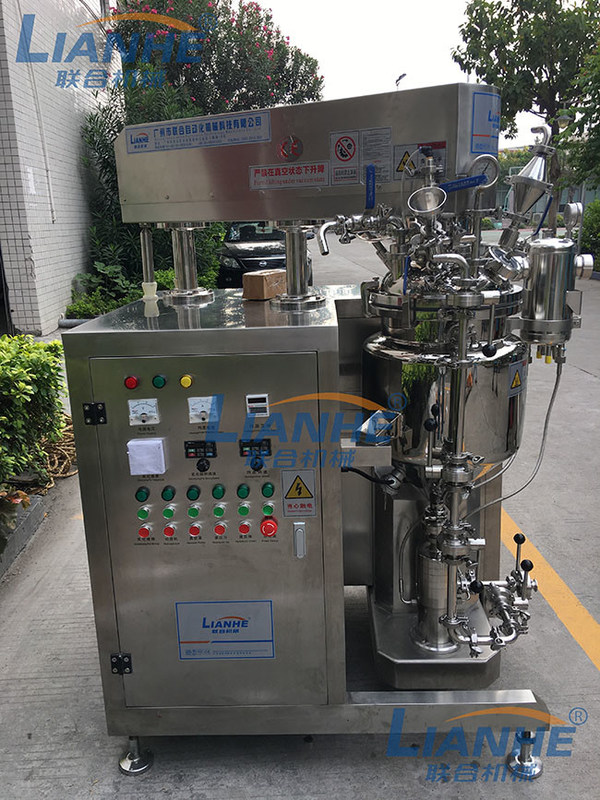

25L Small Scale High-End Vacuum Emulsifying Mixer European Standard
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | LIANHE |
| Certificação: | CE , ISO , SGS , TUV |
| Número do modelo: | LH-VME 25 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 |
|---|---|
| Preço: | Contact Us |
| Detalhes da embalagem: | Empacotado normalmente no filme de madeira do caso ou do envolvimento, igualmente pode ser personali |
| Tempo de entrega: | 30 dias de trabalho |
| Termos de pagamento: | T/T, L/C, D/A |
| Habilidade da fonte: | 20 grupos/grupos pelo mês |
|
Informação detalhada |
|||
| capacidade: | 5000L (pode ser personalizado) | Tipo do motor: | Siemens ou ABB somente |
|---|---|---|---|
| Peças materiais do contato: | SUS316L, SUS304 | Função: | Emulsão, homogeneizando, mistura, aquecendo-se, vácuo |
| Tensão: | 220V/380V (pode ser personalizado) | Razões de compra chaves: | Baixo custo de manutenção |
Descrição de produto
25L Small Scale High-End Vacuum Emulsifying Mixer European Standard
Product Description:
The 25L hydraulic lifting type vacuum emulsifying mixer has a homogeneous design of internal and external circulation, make sure the finished product emulsification effect is better. The German Aika technology is adopted, which is favored by European countries.
Product Parameters:
| Capacity (L) | Homogenizer | Agitator | Vacuum pump | Heating system | ||||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | power (kw) | Limit vacuum | Electric heating (kw) | Steam heating (Mpa) | |
| 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 6 | 0.2 |
| 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | -0.1 | 9 | 0.2 |
| 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | -0.1 | 12 | 0.2 |
| 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | -0.1 | 24 | 0.2 |
| 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | -0.1 | 28 | 0.2 |
| 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | -0.1 | 32 | 0.2 |
| 500 | 11 | 0-3600 | 4 | 0-65 | 4 | -0.1 | 50 | 0.2 |
| 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | -0.1 | 54 | 0.2 |
| 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | -0.1 | recommend steam heating | 0.2 |
| 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | -0.1 | 0.2 | |
| The parameters for reference only, all the machines can be customized accordingly. | ||||||||
Working Principle:
The vacuum emulsifying mixer features a single-blade mixer for mixing high dense ingredients and an emulsifier homogenizer for high-speed mixing. The blade mixer has scrapers to clean the mixing bowl’s inside and generates a downward mixing course to keep the homogenizer running at full capacity. The Vacuum Emulsifying Mixer’s homogenizer head comprises a rotor and a stator that spins at high speeds. The fast-spinning speed of the stator and rotor creates a pressure contrast within the homo-head. Moreover, the homo-head shears, breaks, mixes, and emulsifies raw materials. The emulsifying process involves emulsified material gushing forth homo-head by the blade mixer.
The vacuum emulsifying mixer are mainly used to make high viscosity emulsions, especially creams, ointments and lotions. The functions of heating, cooling, dissolving, emulsification and vacuum defoaming can be completed at one time with an emulsifier; the raw materials can be fully pulverized, mixed, emulsified and homogenized to increase the gloss and stability of the product.
If customers have any doubt on the machine, or if you are not sure whether this machine is suitable for your products or not, please send us inquiry and we will get back to you very soon.
Our Service:
We provide Turn-key project service to customer.
1. Factory Layout design;
2. Factory Decoration based on GMP standard;
3. Formula of products;
4. Raw material etc;
5. Machine design, whole production line from A to Z;
6. Shipping service, FOB, CFR, CIF etc;
7. Installation service. Training service, maintain.
